Saturday, May 16, 2009

Finishing Work

This year I was called in by a co-worker I'd met on a job more local to me last year. We'd worked on an addition near the San Isabel National Forest for a general contractor. With gasoline prices soaring at the time I'd decided to get more local work even if it meant a cut in pay. It would last off and on from April to September of 2008. He'd stop sub-contracting with this general contractor about the stage of installing windows. I would hang on until a little after the painting stage had been completed. Throughout the winter we would intermittently work together for another remodeller in refurbishing foreclosure homes for rental. It was quite a surprise to get a call to help finish this addition out. Suffice it to say it did not get finished by the previous contractor for one reason or another. We were given a chance at remedying that.

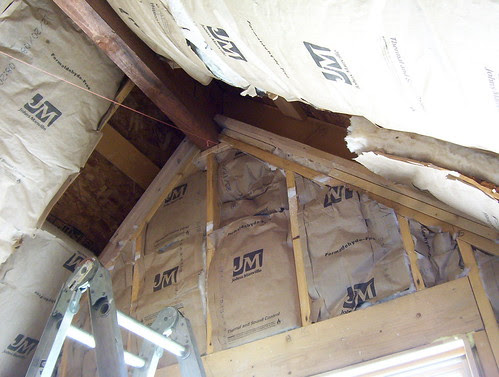

I proceeded to draw up some sketches to facilitate it. We would be changing the sheetrock ceiling in removing it and putting in decorative beams under the rafters. It seemed quite simple and made me wonder why these could not have been installed during the basic roof framing stage. After demolition of the sheetrock some insulation was installed. The frame was bolstered where the beams would sit, creating a beam saddle of sorts high over the windows.

100_5842

100_5844

100_5856

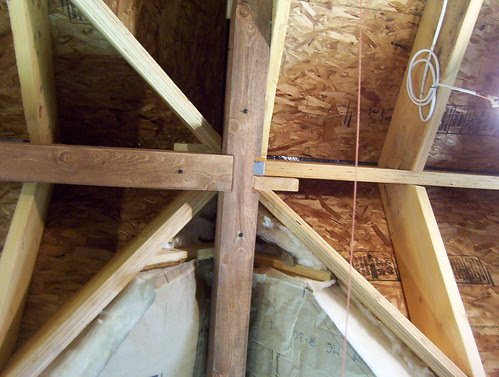

Stringline would give us approximate positioning, intersection points, and visualization if clearances needed to be removed from the rafters along it. With one extra hand we levered them up and fastened them with timberlock screws. We opted for a small housed joint at the center, then drilled it for the ceiling fan wiring and light that was previously installed.

100_5857

100_5860

100_5862

100_5865

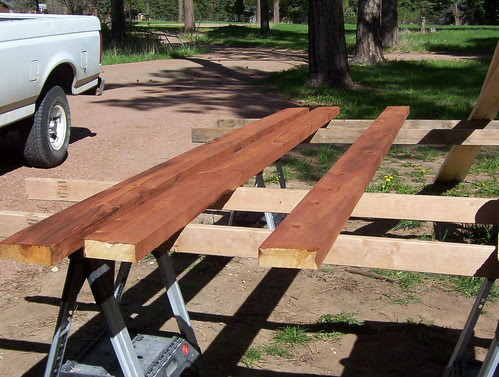

Beforehand we had hauled the beams and panelling up into the addition to condition for two weeks before staining it on a sunny day outside.

Panelling and Beams

100_5847

100_5848

100_5845

100_5852

This photo above features some of the blue mineral stain of "Beetle Kill Pine" before receiving a conditioner and Puritan Pine Minwax stain.

100_5851

Toward the end of the day we ran out of saw horse space, the drying time slowing after the sun went over the mountain.

100_5853

The compound angle at which the panelling edges would be cut was only half a degree off the sketch. This would be where the gables intersected each other at the valley rafter.

Rick's Addition ~ frame study Mar 24, 2009chopangles

Rick's Addition ~ Interior panelling Mar 28, 2009

Where these gables met a deflecting curve was found on one one of the valley rafters. The stringline would again be used from the top to the knee wall to have something to follow, and to compensate for more exact lengths. A test block was also made to help find the actual fitting point or compensate for any final deviations.

100_5898

100_5893

The first few boards above.

100_5900

The view from the bottom upward. I took a pencil and marked a dotted line underneath the stringline. It was perhaps 3/4 of an inch at it's maximum.

100_5884

The view from the top downward.

100_5890

The chop saw set up. We'd have to reset positions a few times to accomodate the installation platform.

100_5902

Going up one side.

100_5908

Going up the other.

100_5915

Finishing out one cubby hole. (The joint at the valley rafter will later get covered with two rough pine boards stained the beam color.)

100_5917

Finishing out the entryway.
